TSC TE 200 Setup

Drivers, sticker loading, and how to flip the printer into thermal mode so it works with TORO.

Setup Instructions

1
Plug the printer into the wall and into a USB port on your computer. Turn it on.
2
Load the stickers. Use the "How to Load Stickers" video below for guidance.
3

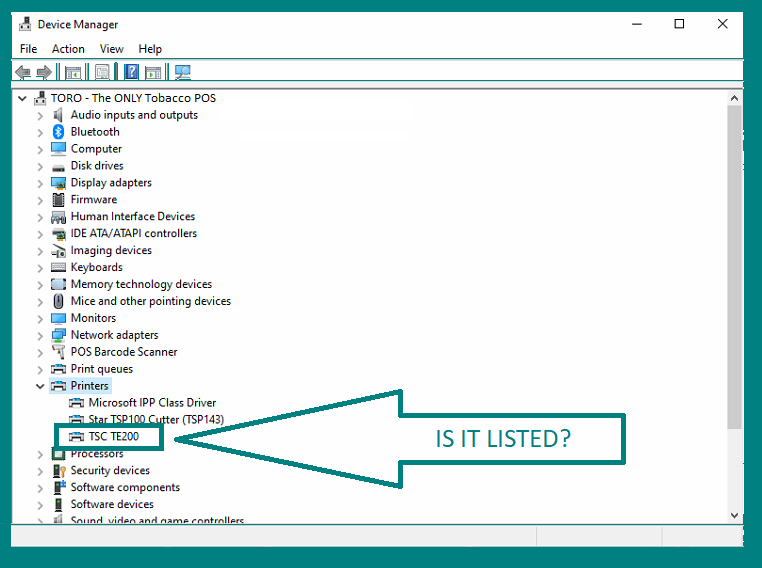

In the bottom-left of your task bar, where it says "Type here to search", click and type "Device Manager", then select it.
4
Scroll down to "Printers" and expand it.

5a) If you see "TSC TE200" listed, skip to Turn On Thermal Mode below.

5b)If you don't see "TSC TE200" in the picture above, continue to step 6.

6) Install the Printer Driver. Click the link, your download will begin, then run the installer.

7) Re-check Device Manager and confirm "TSC TE200" is now listed.

8) Proceed to the Turn On Thermal Mode section below.

Read all 5 steps below before starting. Then do them in order.

1
Turn off the printer.
2
Hold down the button on top.
3
Turn on the printer.
4
When it blinks red 3 times, let go of the button.
5
Once it turns green, press the button 3 times. By the third press, it should feed out one label each time.
6
Press one more time. Success: feeds out one more label. Fail: nothing -- call POS Guys.

If you want to print barcodes outside of TORO, use the standalone software below.

Contact Arden directly at 800-903-6571 x137 -- mention you are a TORO customer.
